DuPont™ Solamet®
Superior solar cell efficiency
DuPont’s Solamet® has done more to
increase solar cell efficiencies and power output
than any other provider worldwide, no one else even comes close.
DuPont’s Solamet® has done more to
increase solar cell efficiencies and power output
than any other provider worldwide, no one else even comes close.
Efficiency Matters
In the last
years
We’ve introduced
new products
And yielded
higher cell efficiencies
The advancements in Solamet® have helped to increase the power output of solar panels by 30%. This means more reliable power with fewer panels and materials and less space. More power with fewer resources means lower overall cost and faster adoption of solar energy worldwide.
We’ve been on the cutting edge of solar cell efficiency for a long time. We were the first to offer:
· Co-fire metallizations
· Frontside chemistry
· Enable LDE technology
Our solar solutions are simple, cost-effective, and offer higher cell efficiency (double-digit) and greater power output at any scale.
With Solamet® metallization pastes, your solar cells will generate more reliable, efficient, safe, and robust power for 25+ years.
Our guide makes it easy to select the right solar cell materials.
DuPont™ Solamet® photovoltaic (PV) metallization pastes are advanced solar cell materials that deliver significantly higher efficiency and greater power output for solar panels.
When screen printed onto the surface of solar cells, metallization pastes collect the electricity produced by the cells and transport it out.
DuPont has introduced more than 110 new Solamet® PV metallization paste formulations over the last ten years, and continues to develop new Solamet® pastes to boost solar cell efficiencies even more.
We invite you to explore our DuPont™ Solamet® PV Metallization Paste Selector Guide and find the Solamet® pastes that are best suited for your application.

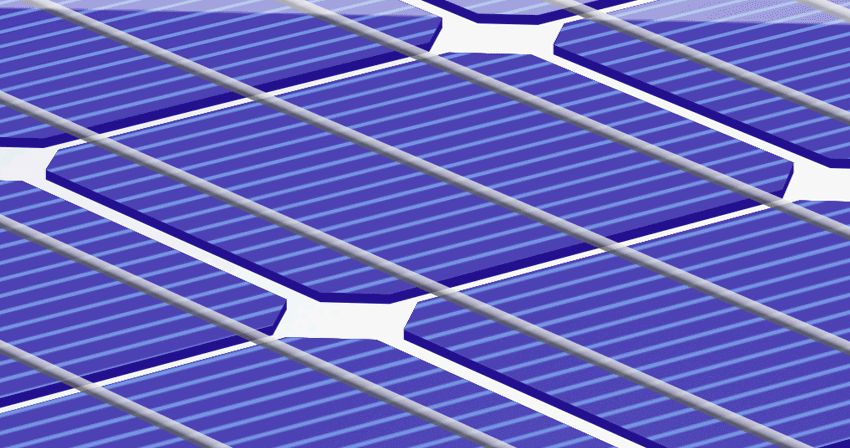

Photovoltaic metallization pastes are screen printed onto the surface of solar cells in a pattern of grid lines which serve to collect electricity produced by the cell and transport it out. Single print, which refers to the printing of a single layer of silver paste on the front side of a solar cell as a conductor, is the most common screen printing technology. From Solamet® PV145 paste to the latest generation of Solamet® PV21x paste available today, Solamet® photovoltaic metallization pastes continue to set the standard for solar cell efficiency.

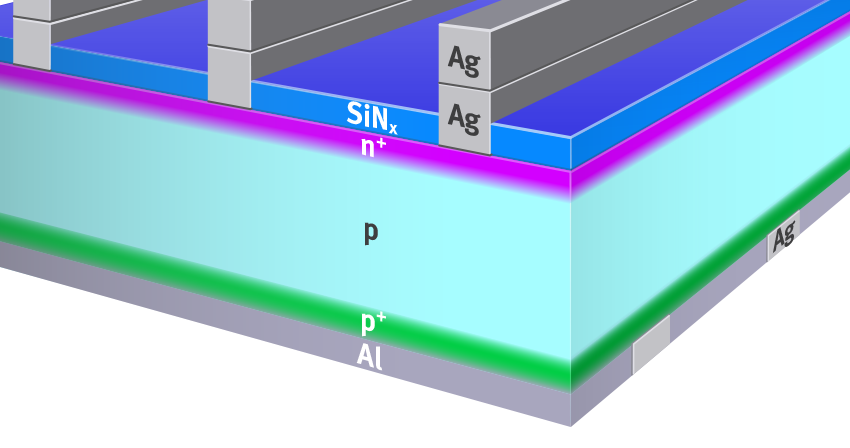

To maximize the efficiency of a solar cell, double (or multiple) printing technology reduces the shadowing effect of wide grid lines and improves electrical conductivity. In addition to demanding precise alignment of the patterning system, multiple printing requires the paste to be finely tuned to perform consistently during all printing passes.

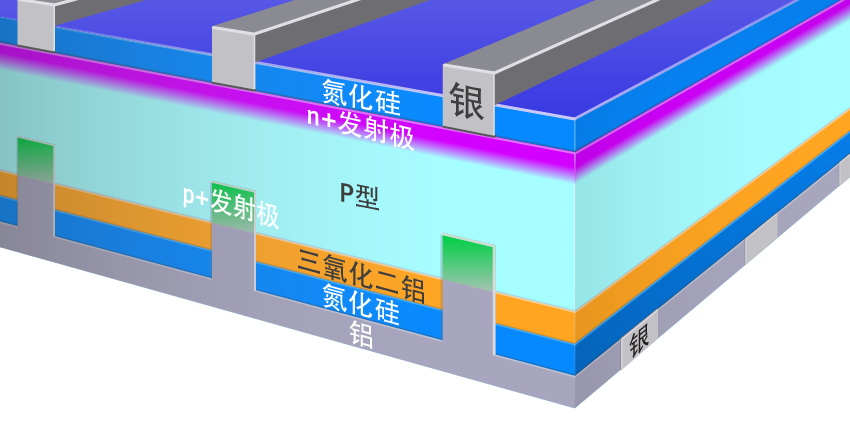

Passivated Emitter Rear Cell (PERC) is a solar cell structure on p-type crystalline silicon wafers that forms the rear localized aluminum-alloyed contact structures, which reduces the effective rear surface recombination velocity (SRV) by forming localized back surface field (LBSF) regions through patterned dielectrics. PERC structures can enable higher cell efficiencies than cells employing a full area aluminum-alloyed BSF.
N-type solar cells are based on n-type silicon wafers which are produced differently in the doping process during crystallization: while for p-type silicon usually employs boron as a dopant, n-type silicon crystals, usually phosphorus is added to the silicon melt. N-type solar cells feature two important advantages: they do not suffer from light induced degradation (LID) and they are less sensitive to impurities that are usually present in silicon feedstock.

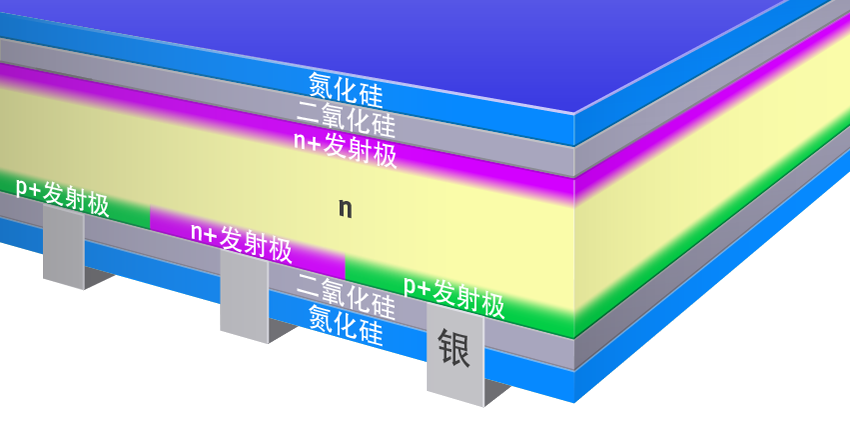

Interdigitated back contact solar (IBC) cells are made by screen printing dopant materials onto the back surface of a semiconductor substrate in a pair of interdigitated patterns. Rear contact solar cells eliminate shading losses altogether by putting both contacts on the rear of the cell. Cells with both contacts on the rear are easier to interconnect and can be placed closer together in the module since there is no need for a space between the cells.
“DuPont continues to deliver technology advancements that enable module manufacturers to improve their product offerings. We have come to count on the ability of DuPont to constantly push the boundaries of photovoltaic materials that enable solar products to be more efficient, reliable and offer a higher return on investment.”
- C.J. Hung, president of Taiwan Solar Energy Company
“DuPont™ Solamet® technology plays a central role in making solar panels more powerful and more cost-effective. The technology is fostering a fast-growing industry that is creating jobs while enabling sustainable living for humankind. This is a strong example of chemistry having a direct, positive impact on society, which is why these inventors are clearly ‘Heroes of Chemistry.’”
- Peter Dorhout, ACS President
"TOPCon technologies could further increase solar cell efficiencies, and metallization paste is crucial."
- Guangyao Jin, chief scientist, DuPont Photovoltaic Solutions
