Tyvek / DuPont™ Tyvek® 500

TY198S WH

DuPont™ Tyvek® 500

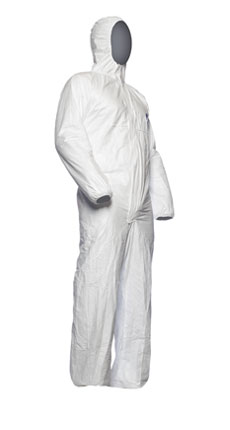

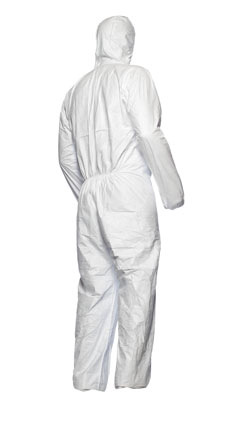

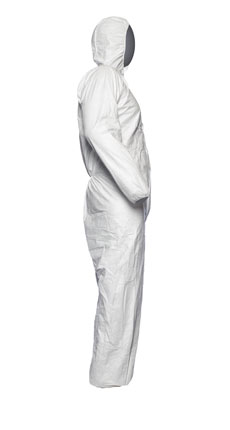

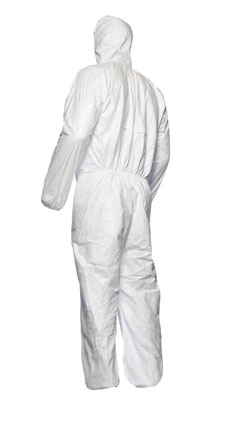

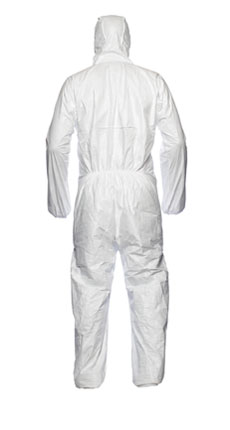

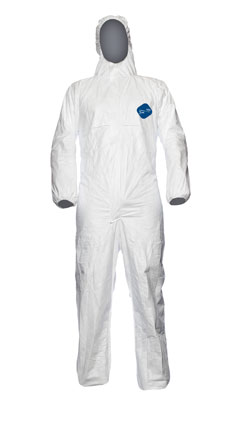

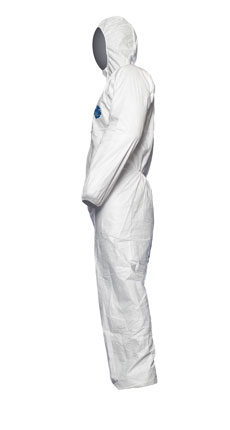

DuPont™ Tyvek® 500, model TY198S. Coverall with hood. Serged external seams. Elastic wrists, ankles and face. Elastic waist (glued-in). Storm Flap. Semi-auto locking slider zipper pull. White.




Hover over image to zoom
Name Description
Full Part Number TY198SWHxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials Tyvek®
Design Hooded coverall
Seam Serged (external)
Color White
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X, 7X
Option Codes LA
Wrist Elastic

FEATURES & PRODUCT DETAILS

Tyvek® 500 garments are composed of flash spun high density polyethylene which creates a unique, nonwoven material available only from DuPont. Tyvek® garments provide an ideal balance of protection, durability and comfort. They are now available with external serged seams that provide the performance of Type 5/6 garments, which have been tested to standards against light liquid aerosols and airborne solid particles. The coveralls provide an effective barrier against particles (down to 1.0 micron in size). Tyvek® 500 coveralls are suitable for applications such as pharmaceutical handling, chemical processing, automatic spray painting, maintenance and many others. Tyvek® 500 Type 5/6 coveralls offer the following safety and comfort benefits:

  • Zipper features a semi-automatic locking slider allowing the puller to stay down and in a locked position
  • Chemical protective clothing, Category III, Type 5-B and 6-B..
  • EN 1073-2 (protection against radioactive contamination)
  • Protection against infective agents (EN 14126) including resistance to penetration by blood and body fluids using synthetic blood (ISO 16603)
  • Antistatic treatment (EN 1149-5) - on both sides
  • Serged external seams featuring patent-pending technology for enhanced liquid spray tightness
  • Very low inward leakage due to optimized design
  • Tyvek® auto-lock zipper and storm flap for increased protection
  • Elastic face, wrists and ankles as well as glued-in waist elastic
  • Products made after January, 2023 are manufactured under specifications that do not contain natural rubber latex.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness (PPSH-249) DIN EN ISO 534 140 µm
Basis Weight. DIN EN ISO 536 41.5 g/m2
Burst Strength - Mullen ISO 2758 345 kPa
Tear Resistance - Trap Tear (MD) EN ISO 9073-4 27 N
Tear Resistance - Trap Tear (CD) EN ISO 9073-4 20 N
Tensile Strength (MD) DIN EN ISO 13934-1 82 N
Tensile Strength (XD) DIN EN ISO 13934-1 68 N
Hydrostatic Head AATCC 127 48 inches H2O
Surface Resistivity (25°C / 55% RH) ASTM D257 (1081) < 6.3 x 10^9 ohms/square
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS
