Tyvek / DuPont™ Tyvek® 500 HV

TY127S HV XC

DuPont™ Tyvek® 500 HV

DuPont™ Tyvek® 500 HV Coverall. Ergonomic-protective design. Respirator Fit Hood. Elastic Wrists and Ankles. Elastic Waist, Serged Seams. Tyvek® zipper and flap. Fluorescent orange with grey retroreflective material. Retroreflective bands form a symmetric "X" on the back of the coverall to distinguish rearward and forward orientation of the wearer.




Hover over image to zoom

Name Description
Full Part Number TY127SHVxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials TYVEK® 500 HV
Design Coverall w/ Resp. Fit Hood, Elastic Wrists and Ankles
Seam Serged
Color Orange
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X
Option Codes XC

FEATURES & PRODUCT DETAILS

DuPont™ Tyvek® 500 HV. Collared coverall available in fluorescent orange with silver grey retroreflective bands for day and night visibility, available in sizes SM to 3X. Robust yet lightweight. Mandarin collar, elasticated wrists and ankles as well as glued-in waist elastic. Ample crotch area for freedom of movement. Large, easy-to grasp zipper puller.
Tyvek® 500 HV garments are mainly composed of flash spun polyethylene, providing an ideal balance of protection, durability and comfort. Thanks to their nonwoven structure, they are permeable to both air and water vapor, yet repel water-based liquids and aerosols. They offer an excellent barrier against fine particles and fibers, are ultra-low linting and antistatically treated on the inside. Their bright fluorescent orange color background material combined with silver grey retroreflective material make them highly visible during the day as well as in the night (when exposed to a light source).

  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination), EN ISO 20471 (High Visibility Clothing, Class 3).
  • Antistatic treatment (EN 1149-5) - on inside.
  • Stitched external seams.
  • Very low inward leakage thanks to optimized design.
  • Tyvek® auto-lock zipper and zipper flap for increased protection.
  • Tyvek® 500 HV meets the single-use disposable coverall requirements of ANSI/ISEA 107-2020 Type R/Class 3 Section 11

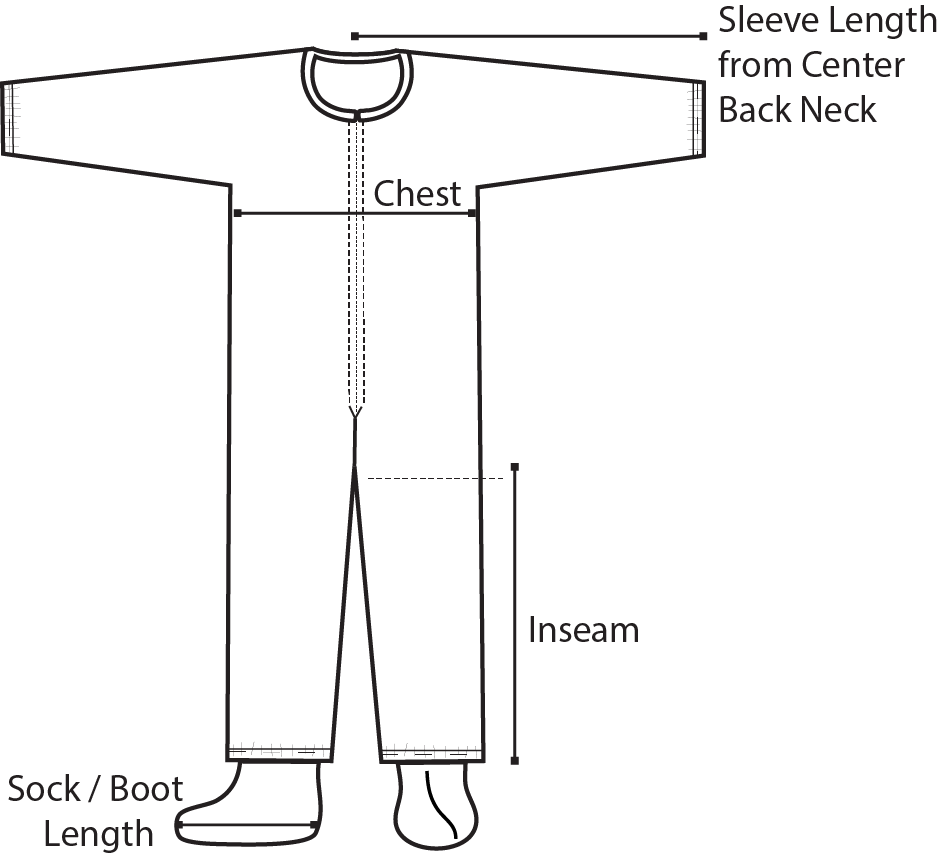

FINISHED DIMENSIONS

AVAILABLE OPTIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Abrasion Resistance 7 EN 530 Method 2 >100 cycles
Puncture Resistance EN 863 >10 N
Tensile Strength DIN EN ISO 13934-1 >30 N
Flex Cracking Resistance 7 EN ISO 9073-4 >10 N
Flex Cracking Resistance 7 EN ISO 7854 Method B >15000 cycles
Surface Resistivity (25& RH), inside** EN 1149-1:2006 • EN 1149-5:2008 < 2,5 • 109 Ohm
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

SPECIAL WARNINGS
