Tyvek / DuPont™ Tyvek® 500 HV

TY125S HV XC

DuPont™ Tyvek® 500 HV

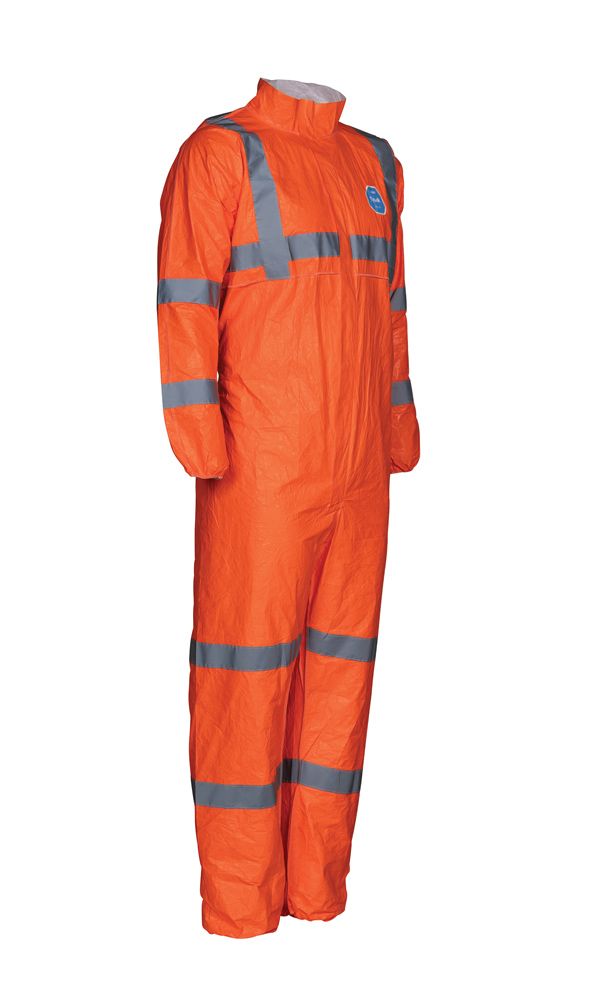

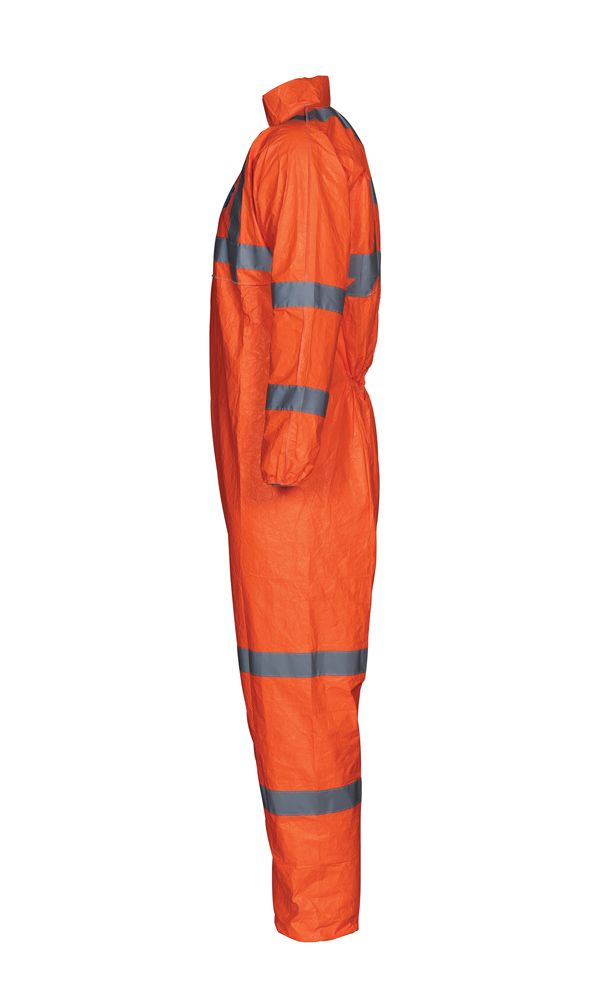

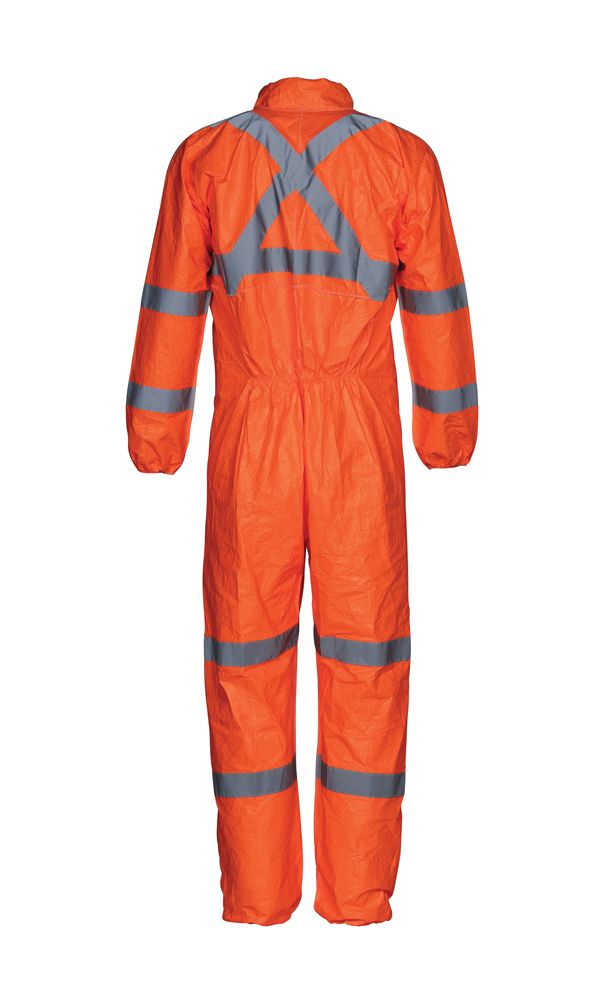

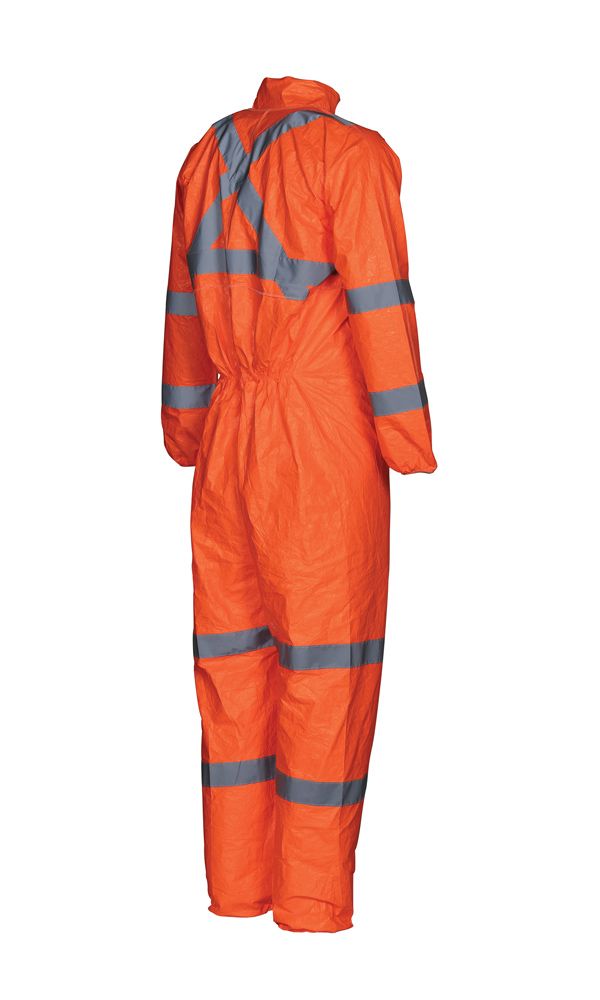

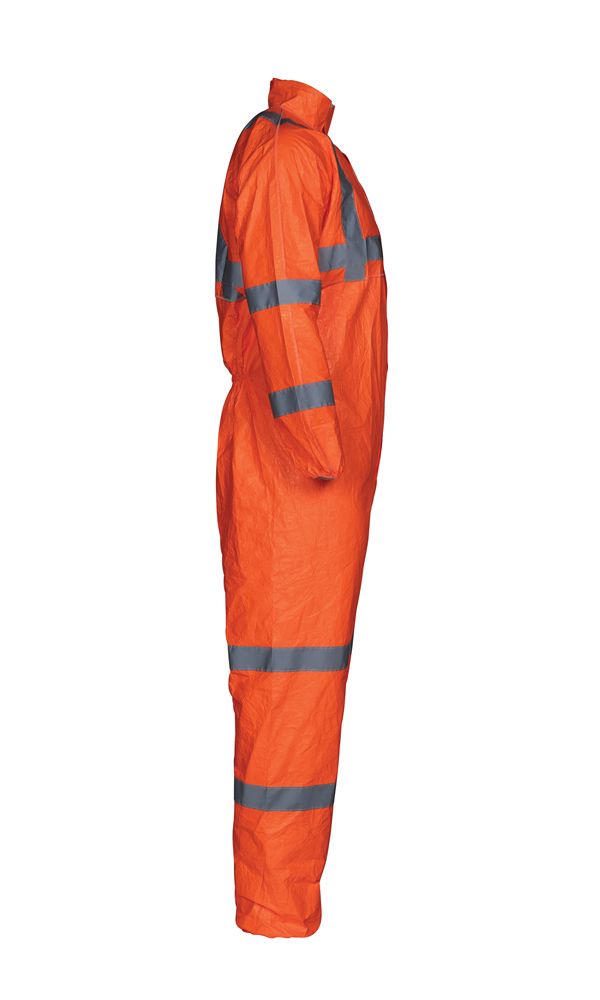

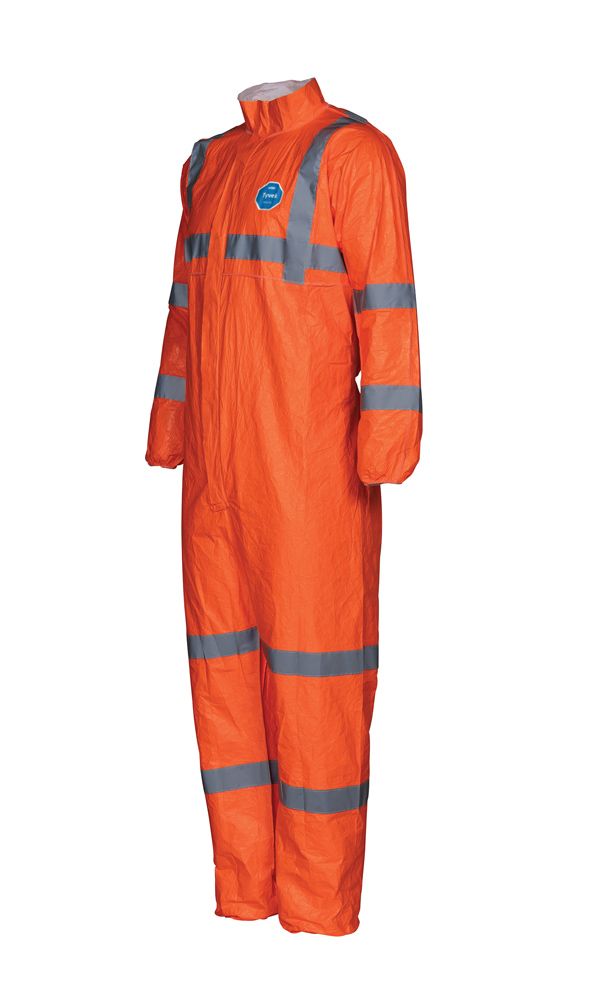

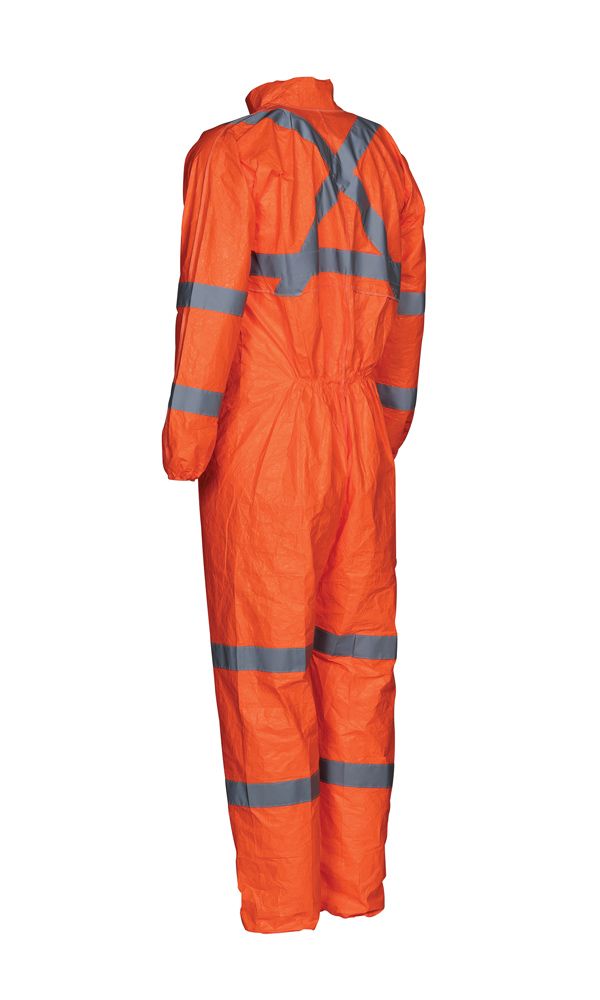

DuPont™ Tyvek® 500 HV Coverall. The durability and breathability of Tyvek® in a high-visibility garment. Fluorescent orange with silver gray retroreflective material and a retroreflective "X" on the back to distinguish rearward and forward orientation of the wearer. Features an ergonomic-protective design, a collar, elastic wrists, ankles, and waist, a storm flap, and serged seams. Suitable for transportation, mining, waste handling, and construction applications.







Hover over image to zoom
PRODUCT DETAILS
Full Part Number TY125SHVxx0025yy (xx=size;yy=option code)  Help
Fabric/Materials Tyvek® 500 HV
Design Coverall w/ Elastic Wrists and Ankles
Seam Serged
Color Orange
Quantity/Box 25 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X, 6X
Option Codes XC

Features & Product Details

DuPont™ Tyvek® 500 HV. Coverall available in fluorescent orange with silver grey retroreflective bands for day and night visibility, available in sizes SM to 6X. Robust yet lightweight. Elasticated wrists and ankles as well as glued-in waist elastic. Ample crotch area for freedom of movement. Large, easy-to grasp zipper puller.
Tyvek® 500 HV garments are mainly composed of flash spun polyethylene, providing an ideal balance of protection, durability and comfort. Thanks to their nonwoven structure, they are permeable to both air and water vapor, yet repel water-based liquids and aerosols. They offer an excellent barrier against fine particles and fibers, are ultra-low linting and antistatically treated on the inside. Their bright fluorescent orange color background material combined with silver grey retroreflective material make them highly visible during the day as well as in the night (when exposed to a light source).

  • Meets the single use disposable coverall requirements of ANSI/ISEA 107-2020 Section 11
  • EN 14126 (barrier to infective agents), EN 1073-2 (protection against radioactive contamination), EN ISO 20471 (High Visibility Clothing, Class 3).
  • Antistatic treatment (EN 1149-5) - on inside.
  • Stitched external seams...
  • Very low inward leakage thanks to optimized design
  • Tyvek® auto-lock zipper and zipper flap for increased protection.
  • Pin locking slider locks in place when the pins on the puller are pushed into the zipper elements
  • Collared coverall. Mandarin collar.
  • Products made after January, 2023 are manufactured under specifications that do not contain natural rubber latex.

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

AVAILABLE OPTIONS

Fabric & Chemical Resistance Data

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Abrasion Resistance 7 EN 530 Method 2 >100 cycles
Puncture Resistance EN 863 >10 N
Tensile Strength DIN EN ISO 13934-1 >30 N
Flex Cracking Resistance 7 EN ISO 9073-4 >10 N
Flex Cracking Resistance 7 EN ISO 7854 Method B >15000 cycles
Surface Resistivity (23°C / 25% RH) EN 1149-1 <2.5 x 10^9 ohms
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

SPECIAL WARNINGS

Frequently Asked Questions

Explore frequently asked questions to help you choose and use DuPont Personal Protection products with confidence.
Are Tyvek® garments low linting?
Tyvek® fabric is low-linting by nature of its continuously strong, high-density polyethylene fibers. DuPont cannot guarantee the absence of particles on these garments as threads and zippers can be the most significant source of contamination. For end users with concerns about contamination or any other contaminants, the best practice is to audit in-bound materials, including garments, for those contaminants. End users with highly specialized requirements may consider Tyvek® IsoClean® garments for controlled environments designated as Clean-Processed (0C option): These garments are specially processed to minimize particle shedding and individually packaged in an ISO Class 4 cleanroom.
Do Tyvek® 500 HV products contain silicone?
All DuPont Personal Protection products are manufactured under specifications that do not contain silicone, with some exceptions. Tyvek® friction-coated shoe covers or Tyvek® garments with friction-coated shoe covers might contain silicone. This includes Tyvek® styles TY122, TY121, FC450 and FC454. Additionally, Tychem® 6000 AL styles TF630 and TF640T contain a silicone valve diaphragm. End users who are consuming these styles and who have concerns about silicone contamination should conduct their own testing to ensure they are suitable for their application(s).
