Tyvek / DuPont™ Tychem® 6000

TF169T GY

DuPont™ Tychem® 6000

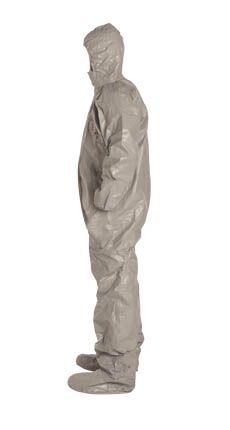

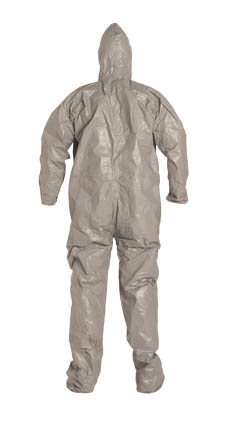

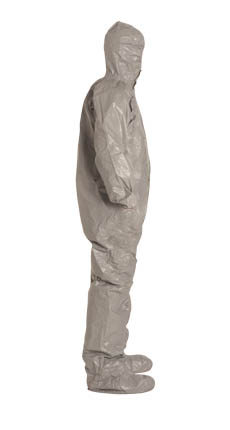

DuPont™ Tychem® 6000 Coverall. Respirator Fit Hood. Elastic Wrists. Attached Socks. Double Storm Flap. Taped Seams. Semi-auto locking slider zipper pull. Gray.




Hover over image to zoom
Name Description
Full Part Number TF169TGYxx0006yy (xx=size;yy=option code)  Help
Fabric/Materials TYCHEM® 6000
Design Coverall w/ Resp. Fit Hood, Elastic Wrists, Att. Socks
Seam Taped
Color Gray
Quantity/Box 6 per case
Sizes SM, MD, LG, XL, 2X, 3X, 4X, 5X
Option Codes 00,TV
Wrist Elastic

FEATURES & PRODUCT DETAILS

Tychem® 6000 garments are made of a proprietary barrier film laminated to a Tyvek® substrate. The fabric provides at least 30 minutes of protection against over 180 challenge chemicals including chemical warfare agents and toxic industrial chemicals. Tychem® 6000 garments are strong, durable and lightweight, and they are available in both high-visibility orange and low-visibility gray fabrics, making them a preferred choice for law enforcement, emergency medical services (EMS) technicians and military personnel.

  • Zipper features a semi-automatic locking slider allowing the puller to stay down and in a locked position
  • Taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered with a strip of compatible chemical-resistant material through heat sealing
  • Three-piece hood design with longer zipper that extends to chin for complete coverage of neck area and good fit around a respirator
  • Storm flap covers zipper which can be sealed by the wearer with adhesive strip to prevent intrusion at zipper
  • Elastic opening for tighter fit at wrist
  • Integrated socks composed of garment material
  • Manufactured under specifications that do not contain natural rubber latex.
  • Meets the U.S. industry requirements for blood (ASTM F1670) and viral penetration (ASTM F1671) protecting against several bloodborne pathogen exposure risks.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Basis Weight. ASTM D3776 3.5 oz/yd2
Burst Strength - Ball ASTM D3787 55 lbf
Tear Resistance - Trap Tear (MD) ASTM D5733 8 lbf
Tear Resistance - Trap Tear (CD) ASTM D5733 7 lbf
Breaking Strength -- Grab (MD). ASTM D751 63 lbf
Breaking Strength-Grab (CD). ASTM D751 69 lbf
Puncture, Propagation, Tear Resistance (MD) ASTM D2582 9 lbf
Puncture, Propagation, Tear Resistance (CD) ASTM D2582 7 lbf
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS

To access secured content from DuPont Please Sign In or Sign Up below
