Tyvek / DuPont™ Tychem® 5000

C3199T TN option WG

DuPont™ Tychem® 5000

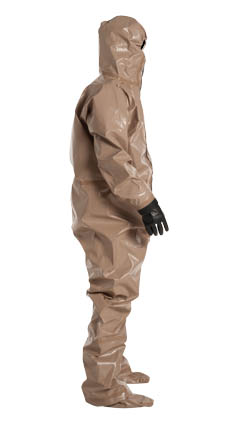

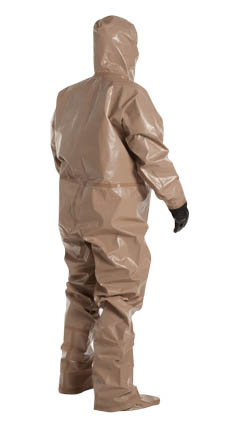

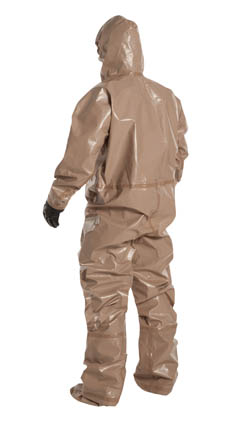

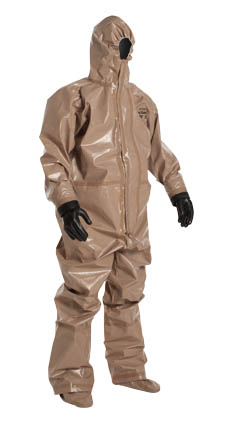

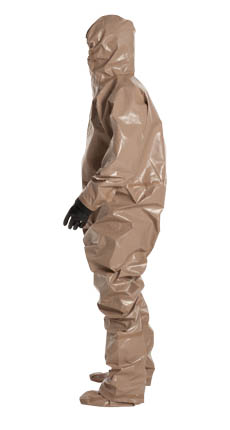

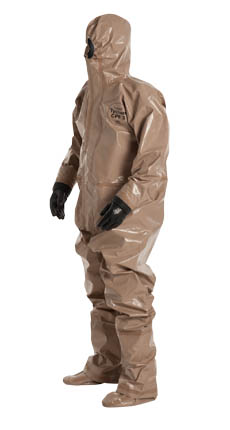

DuPont™ Tychem® 5000 Coverall. Certified to NFPA 1992. Respirator Fit Hood. Attached Dual Layer Gloves, Internal: Multi-layer laminate / External: Guardian™ Butyl. Attached Socks with Outer Boot Flaps. Double Storm Flap with Hook & Loop Closure. Taped Seams. Tan.




Hover over image to zoom
Name Description
Full Part Number C3199TTNxx0006yy (xx=size;yy=option code)  Help
Fabric/Materials Tychem® 5000
Design Coverall w/ Resp. Fit Hood, Att. Gloves, Att. Socks w/ Outer Boot Flaps. Certified to NFPA 1992
Seam Taped
Color Tan
Quantity/Box 6 per case
Sizes 00, SM, MD, LG, XL, 2X, 3X, 4X, 5X
Option Codes WG

FEATURES & PRODUCT DETAILS

Tychem® 5000 fabric is composed of a multi-layer film barrier laminated to a durable 2.0 oz/yd2 polypropylene substrate. Tychem® 5000 fabric is strong and durable for rigorous activities and rugged situations involving liquid splash and provides barrier to a broad range of chemicals. Typical Applications: chemical handling, petro-chemical, hazardous materials/waste clean-up, fire departments, industrial hazmat teams, utilities, and domestic preparedness. Commonly used in domestic preparedness for situations where the potential to exposure to chemicals exist.

  • Certified compliant to the 2018 edition of NFPA 1992, Standard on Liquid Splash-Protective Ensembles and Clothing for Hazardous Materials Emergencies by an independent third party certifying organization.
  • Taped seams provide strong chemical resistance against heavy liquid splashes. A sewn seam is covered with a strip of compatible chemical-resistant material through heat sealing
  • Three-piece hood design with longer zipper that extends to chin for complete coverage of neck area and good fit around a respirator
  • Larger zipper pull is easier to grasp for easier donning and doffing
  • Storm flap covers zipper which can be secured by the wearer with rugged hook and loop material to prevent intrusion at zipper
  • Dolman sleeve design for greater range of motion and comfort.
  • Attached internal gloves composed of five layer laminate film for a broad range of chemical protection
  • Butyl gloves provide mechanical and physical durability to help protect inner gloves
  • Integrated socks composed of garment material
  • Attached flaps are designed to cover boot tops to help reduce potential for liquid intrusion
  • Meets the U.S. industry requirements for blood (ASTM F1670) and viral penetration (ASTM F1671) protecting against several bloodborne pathogen exposure risks.

AVAILABLE OPTIONS

FINISHED DIMENSIONS

ADDITIONAL EQUIPMENT NEEDED

FABRIC & CHEMICAL RESISTANCE DATA

Physical Properties

Data relating to mechanical performance of the fabrics used in DuPont chemical protective clothing, listed for the selected garment according to the test methods and relevant European standard, if applicable. Such properties, including abrasion and flex-cracking resistance, tensile strength and puncture resistance can help in the assessment of protective performance.

Property Test Method Typical Result
Thickness (PPSH-249) ASTM D1777 18 mils
Basis Weight. ASTM D3776 4.4 oz/yd2
Tear Resistance - Trap Tear (MD) ASTM D5587 23 lbf
Tear Resistance - Trap Tear (CD) ASTM D5587 29 lbf
Breaking Strength -- Grab (MD). ASTM D5034 68 lbf
Breaking Strength-Grab (CD). ASTM D5034 60 lbf
Wearing Apparel Flammability 16 CFR 1610 Help Class 1

CHEMICAL RESISTANCE

SPECIAL WARNINGS
